NBP850nm narrow bandpass filter
850nm black glass filter is a filter product with high cut-off depth requirements among black glass optical colored glass materials. It can cut off deeper in the cut-off optical band and filter more interference light, so as to achieve a perfect cut-off between OD2-OD6.850nm band-pass filter is used for CMOS chip color camera, CCD chip color camera, security camera photoresist, black-and-white switching light barrier, security monitor (CCTV) camera, video phone, video doorbell, network camera, electronic toy camera, etc
| Item | Parameters |
| Product name | NBP850nm narrow bandpass filter |
| Model number | NBP850nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |

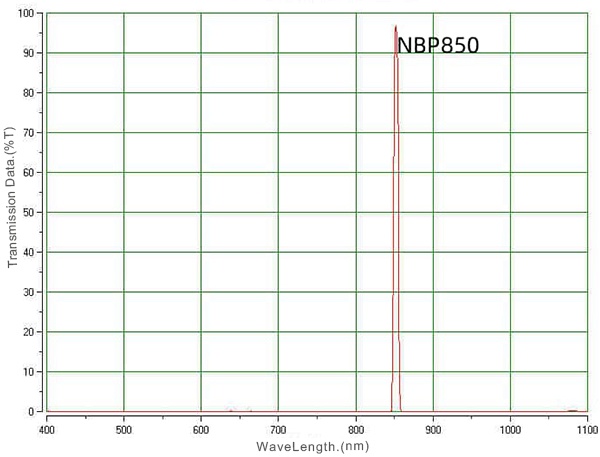

| Centralwavelength(CWL) | 850±5nm |
| FWHM | 20±3nm |
| Transmittance | T＞90%@850±5nm |
| Cut off rate: | OD4 200-1100nm |
| Raw material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension | D8x0.55mm D8x0.55mm D8x1.1mm D14x1mm D15x1.6mm D17x0.7mm D20x0.55mm D25x0.55mm D29x1mm D41x0.55mm 4.5x4.5x0.55mm 6.2x6.2x0.5mm 8.2x8.2x0.55mm 10x7.5x0.55mm 10x10x0.55mm 14x7x0.55mm 14x14x1.1mm 16.9x16.9x0.55mm 17.8x17.8x0.55mm 18x15.5x1.1mm 37x8.2x0.55mm 57x9x1.8mm 86x86x0.55mm 8.2x8.2x1.1mm 14x14x1mm |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
Tags: optical filter , narrow band optical filter , Long Pass Filter , Short Pass Filter , Band Pass Filter , UV IR Cut Off , 532nm notch filter , custom bandpass filter , 940nm bandpass filter , ir bandpass filter , uv band pass filter , infrared bandpass filters
