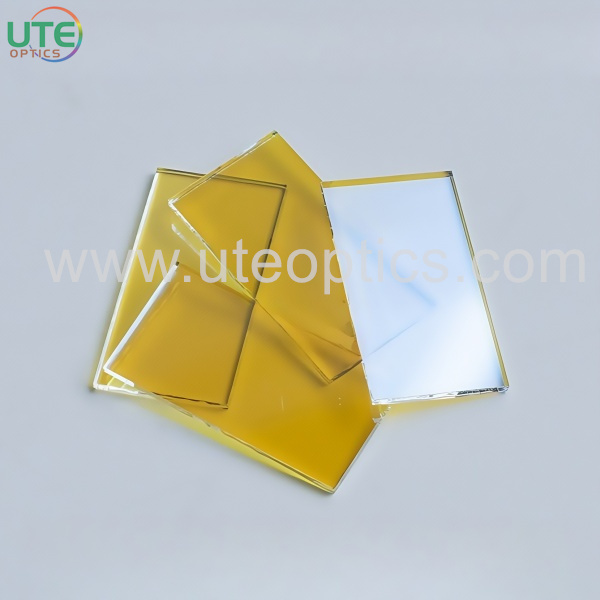

LP550nm Long pass filter
The long wave pass filter has the advantages of large cut-off steepness, high transmittance and high background light density. It is completely different from the traditional optical glass method. When the incident angle changes (rotating from 0 ° to a large angle), the characteristic cut-off wavelength will move to the short wave direction. This function can be applied to system fine-tuning and get the wavelength you need.

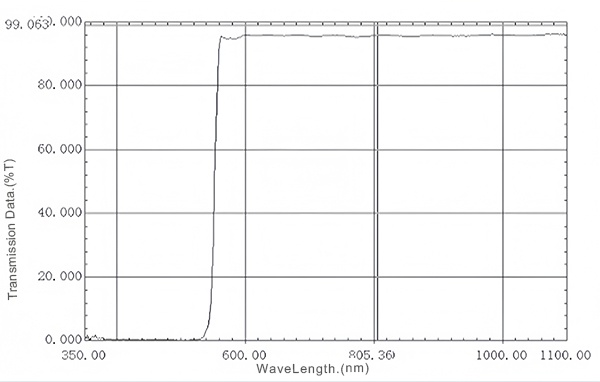

The optical characteristic of 550nm long wave pass filter is that the light source in the cut-off 350-490nm band has a high transmittance of 560-1200nm. In this part of light, the spectrum will be yellow, which can be applied to products with various filter colors and is also essential in IPL Beauty.
| Item | Parameters |
| Product name | LP550nm Long pass filter |
| Model number | LP550nm |
| CWL | 550±5nm |
| Transmittance | T＞90% |
| Transmitting wavelength | 560-1100nm |
| Cutoff wavelength | 200-440nm |
| Blocking depth | >OD3-OD6 UV-NIR |
| Raw material | BK7,D263T,JGS1,Corning gorilla glass or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension/Round Size | D12x6mm D15x5mm |
| Dimension/Square size | 80x80x1mm |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
