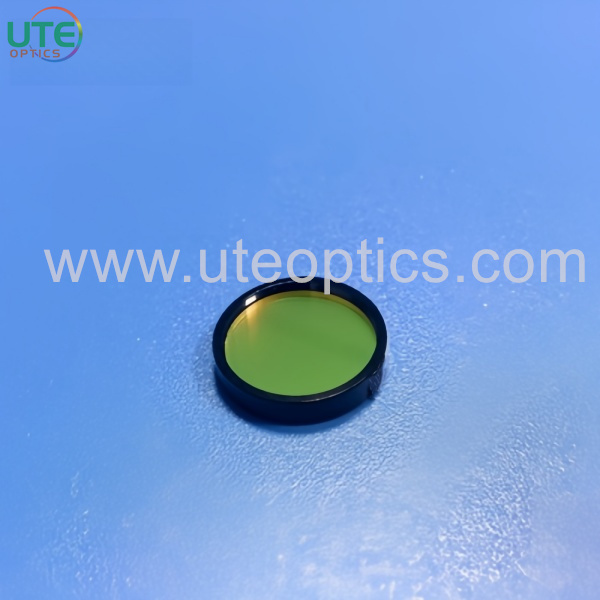

SP530nm short pass filter
Short wavelength pass filters, as an important optical component, are widely used in digital imaging and biomedical cosmetology, fingerprint identification and other fields, and are characterized by allowing light in a certain wavelength range to pass through, while allowing light in another wavelength range to be cut off.
As an important optical element, 530nm short wave pass filter is widely used in the fields of digital image, biomedical beauty, fingerprint identification and so on. Its characteristic is to let the light in one band pass through and cut off the light in another band. The long wave pass and short wave pass filters produced by UTE Optics have the characteristics of high pass rate, wide cut-off band and good film firmness. Filter products are produced according to the index needs of customers.
| Item | Parameters |
| Product name | SP530nm short pass filter |
| Model number | SP530nm |
| Central wavelength(CWL) | 530±5nm |

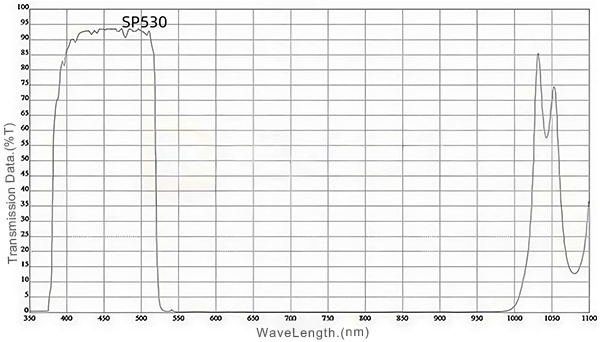

| Transmittance | T＞90% |
| Transmitting wavelength | 380-520nm |
| Cutoff wavelength | 540-1100nm |
| Blocking depth | >OD3-OD6 UV-NIR |
| Raw material | BK7,D263T,JGS1,Corning gorilla glass or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
