SP650nm short pass filter
Short wavelength pass filters, as an important optical component, are widely used in digital imaging and biomedical cosmetology, fingerprint identification and other fields, and are characterized by allowing light in a certain wavelength range to pass through, while allowing light in another wavelength range to be cut off.
As an optical element, the 650nm short wave pass filter professionally produced by UTE Optics is widely used in the fields of digital image, biomedical beauty, fingerprint identification and so on. Its characteristic is to let the light in a certain band pass through and cut off the light in the surrounding band.
The long wave pass and short wave pass filters of nano macro (nm) have the characteristics of high pass rate, wide cross-sectional upper band and good film firmness. The filter products are produced according to the index requirements of customers.
| Item | Parameters |
| Product name | SP650nm short pass filter |
| Model number | SP650nm |
| Central wavelength(CWL) | 650±5nm |

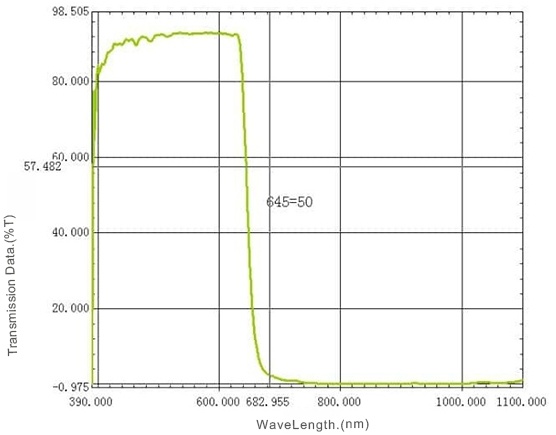

| Transmittance | T＞90% |
| Transmitting wavelength | 350-640nm |
| Cutoff wavelength | 660-1100nm |
| Blocking depth | >OD3-OD6 UV-NIR |
| Raw material | BK7,D263T,JGS1,Corning gorilla glass or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
Tags: optical filter , narrow band optical filter , Long Pass Filter , Short Pass Filter , Band Pass Filter , UV IR Cut Off , 532nm notch filter , custom bandpass filter , 940nm bandpass filter , ir bandpass filter , uv band pass filter , infrared bandpass filters
