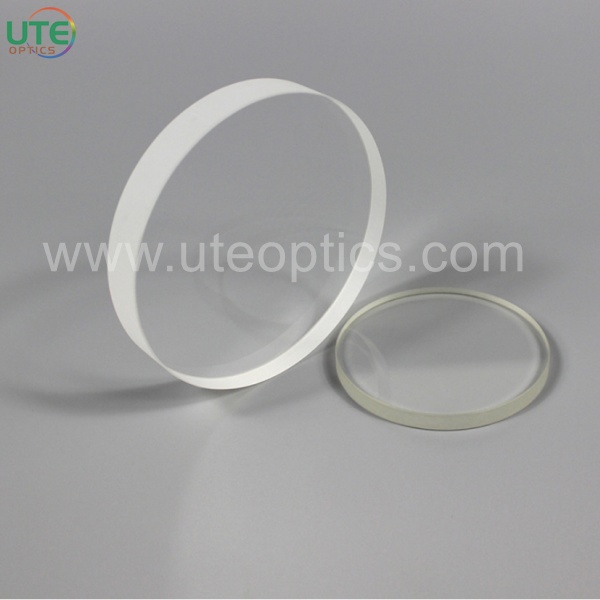

ZJB220 ZJB240 ZJB260 ZJB280 ZJB300 ZJB320 ZJB340 ZJB360 ZJB380 UV Cut Off Glass Filter
The ZJB series UV Cut Off Glass Filter is a high-performance optical filter designed to block specific ultraviolet wavelengths while allowing visible and infrared light to pass through. These filters feature high transmission efficiency and excellent optical performance，they are suitable for applications in life sciences, imaging, industrial, and defense fields.
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| ZJB220 | UV-22 | |
| ZJB240 | WG230 | |
| ZJB260 | ||
| ZJB280 | WG280 | UV-28 |
| ZJB300 | WG295 | UV-30 |
| ZJB320 | WG320 | UV-32 |
| ZJB340 | WG345 | UV-34 |
| ZJB360 | WG360 | UV-36 |
| ZJB380 | GG375 | L-38 |
Parameter of ZJB220 ZJB240 ZJB260 ZJB280 ZJB300 ZJB320 ZJB340 ZJB360 ZJB380 UV Cut Off Glass Filter | |
| Title | ZJB220 ZJB240 ZJB260 ZJB280 ZJB300 ZJB320 ZJB340 ZJB360 ZJB380 UV Cut Off Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | ZJB220 ZJB240 ZJB260 ZJB280 ZJB300 ZJB320 ZJB340 ZJB360 ZJB380 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm or customized |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm or customized |
| Chamfer | 0.25x45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface accuracy | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if high cost |
UV Optical Glass Spectral Curve

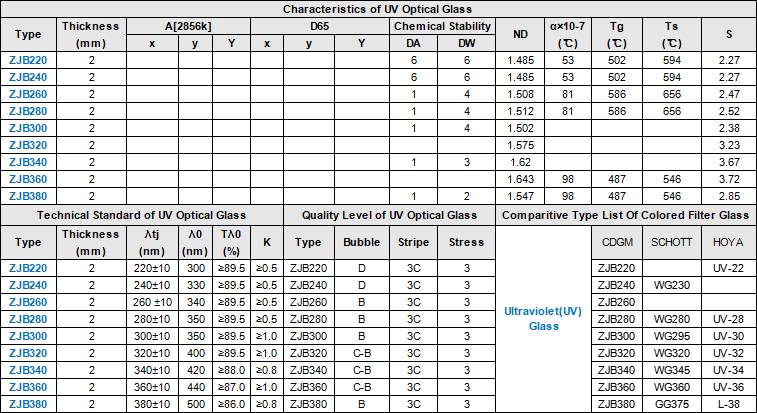

Characteristics Technical Standard Quality Level of UV Optical Glass
