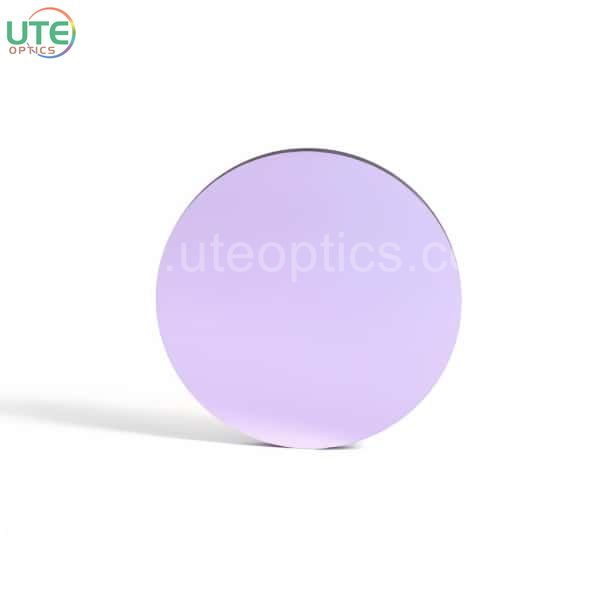

Driverless LiDAR 1550nm Reflective Mirror
Specializing in the production of unmanned LIDAR application 1550nm reflector, reflectivity up to 99% or more, can be processed according to the size can be required, square, round, shaped can be produced.
1550nm narrow band filter for lidar
1550nm narrow-band infrared filter is widely used in emerging fields such as optical fiber external detection, machine vision light source, water quality detection, driverless vehicle lidar and so on.
At present, 1550nm narrow-band filter is widely used in unmanned lidar applications. Compared with 905nm filter, 1550nm filter can improve higher laser power and higher safety to human eyes.
| Item | Parameters |
| Product name | Driverless LiDAR 1550nm Reflective Mirror |
| Model number | BP1550 |
| CWL | 1550±5nm |
| AOI | 45° |
| Reflected Wavelength | 1550±50nm |

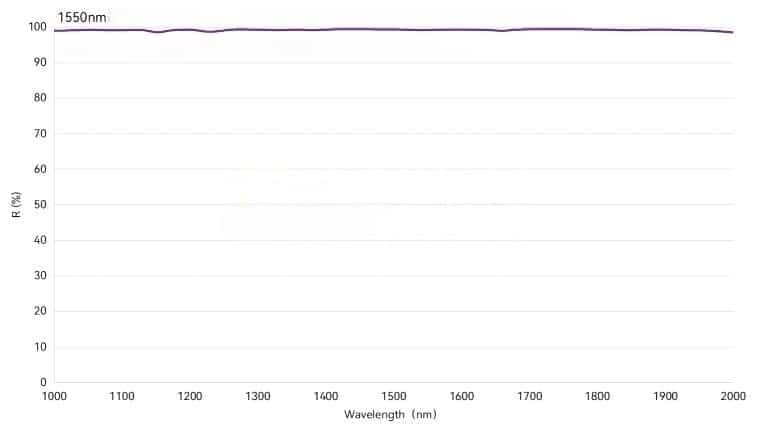

| Reflectivity | UP 99% |
| Row material | K9 BK7 B270 D263T JGS1 or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension | Customized |
| Dimensional tolerances | ±0.1-±0.05mm |
| Thickness | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
Tags: optical filter , narrow band optical filter , Long Pass Filter , Short Pass Filter , Band Pass Filter , UV IR Cut Off , 532nm notch filter , custom bandpass filter , 940nm bandpass filter , ir bandpass filter , uv band pass filter , infrared bandpass filters
